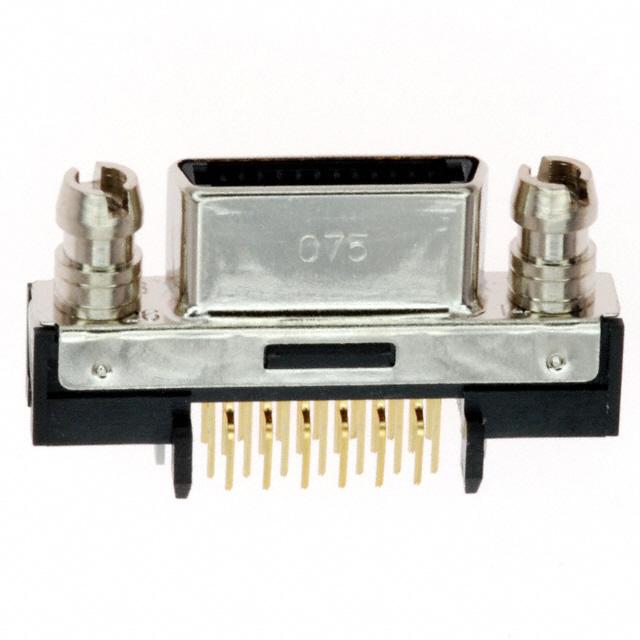

12226-1150-00FR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12226-1150-00FR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 12226-1150-00FR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 12226-1150-00FR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SDR 26POS VERT RECEPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.738 | $3.577 | $3.252 | $3.089 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $3.008 | $2.683 | $2.52 | $2.227 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 12226-1150-00FR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SDR 26POS VERT RECEPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13553 pcs | Data sheet | 122xx-1150-00FRInterconnect Catalog |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 122, Shrunk D Ribbon (SDR) |
| Other Names | 12226-1150-00FR-ND 12226115000FR 45 47452 34037 8 4547452340378 5 45 48623 74504 1 5 48623 74504 54745234037 7100005191 JE-1503-2321-8 JE-1504-3008-8 JE150323218 JE150430088 MSDV26 |
Number of Rows | 2 |
| Number of Positions | 26 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Mating Side (M2) |
| Features | Board Lock, Shielded | Detailed Description | 26 Position Receptacle Connector Panel Mount, Through Hole Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
