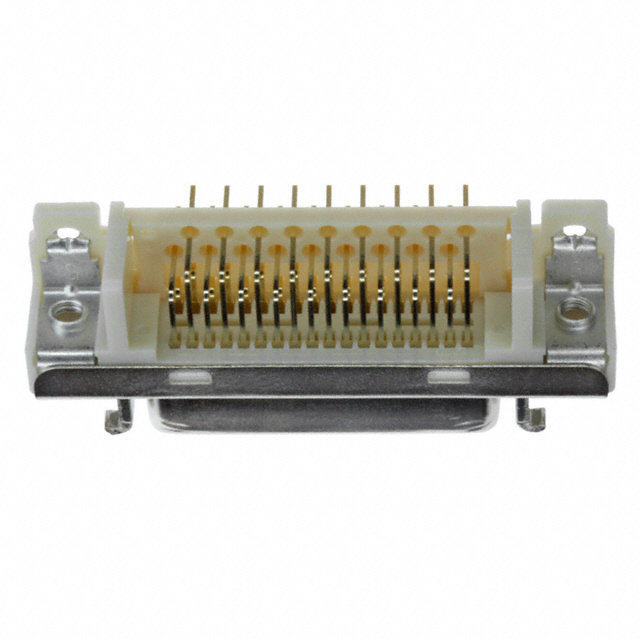

10236-55G3PC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10236-55G3PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10236-55G3PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10236-55G3PC |
|---|---|
| Manufacturer | 3M |
| Description | CONN MDR RCPT 36POS R/A M2.5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.045 | $1.963 | $1.799 | $1.717 | $1.636 | |
| 300 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.431 | $1.39 | $1.186 | $1.104 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10236-55G3PC | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN MDR RCPT 36POS R/A M2.5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35864 pcs | Data sheet | 102xx-55(G,H)3P(L,C) SeriesInterconnect CatalogMDR Series Qualification Report |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 102, Mini D Ribbon (MDR) |
| Other Names | 10236-55G3PC-ND 1023655G3PC 3M1820 4547452262526 54745226252 7000007572 JE150318390 |
Number of Rows | 2 |
| Number of Positions | 36 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Insert, Threaded (M2.5); Latchblocks |
| Features | Board Lock, Shielded | Detailed Description | 36 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
