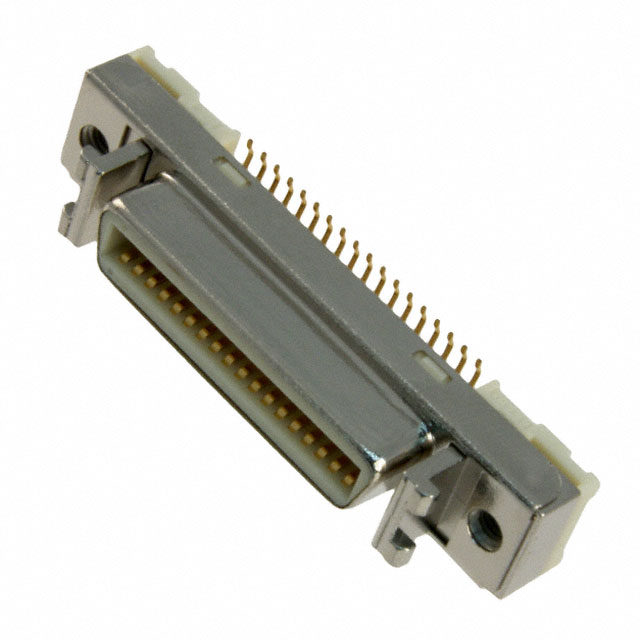

10236-2200PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10236-2200PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10236-2200PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10236-2200PE |
|---|---|
| Manufacturer | 3M |
| Description | CONN MINI-D 36POS VERT RECPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.28 | $3.891 | $3.793 | $3.501 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.307 | $3.015 | $2.821 | $2.587 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10236-2200PE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN MINI-D 36POS VERT RECPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12348 pcs | Data sheet | Interconnect CatalogMDR Series Qualification Report102xx-22y0zE |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 102, Mini D Ribbon (MDR) |
| Other Names | 102362200PE 4547452508051 54745250805 7000090355 JE150343729 |
Number of Rows | 2 |
| Number of Positions | 36 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Insert, Threaded (M2.6); Latchblocks |
| Features | Board Guide, Shielded | Detailed Description | 36 Position Receptacle Connector Surface Mount Solder |
| Contact Finish Thickness | 20.0µin (0.51µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
