AS5601-ASOM

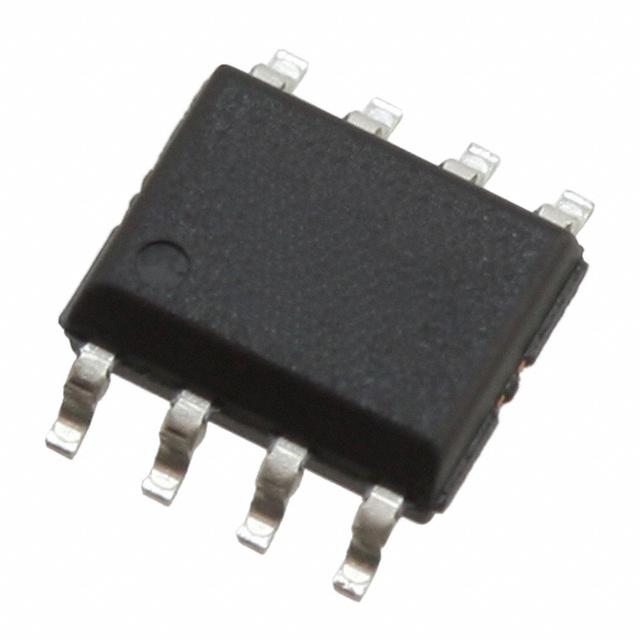

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS5601-ASOM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AS5601-ASOM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AS5601-ASOM |
|---|---|
| Manufacturer | ams |
| Description | SENSOR ANGLE SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | |||
|---|---|---|---|---|---|
| $0.762 | $0.713 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AS5601-ASOM | Manufacturer | ams |
|---|---|---|---|
| Description | SENSOR ANGLE SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43983 pcs | Data sheet | AS5601 |
| Category | Sensors, Transducers | Voltage - Supply | 3.3V, 5V |
| Termination Style | SMD (SMT) Tab | Technology | Hall Effect |
| Supplier Device Package | 8-SOIC | Series | - |
| Rotation Angle - Electrical, Mechanical | - | Resistance Tolerance | - |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Signal | - | Output | I²C, Quadrature |
| Other Names | 191240011 AS5601-ASOMTR |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 40 Weeks | Linearity | - |
| Linear Range | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| For Measuring | Angle | Detailed Description | Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab |
| Actuator Type | External Magnet, Not Included |
