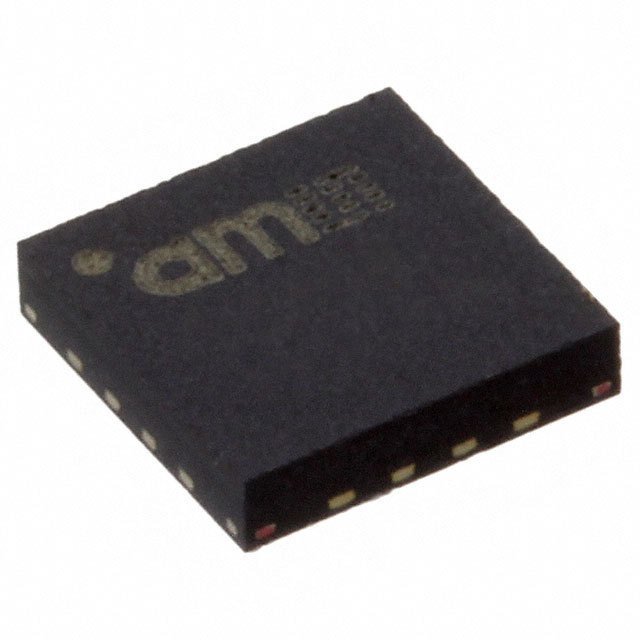

AS5055A-BQFM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS5055A-BQFM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AS5055A-BQFM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AS5055A-BQFM |
|---|---|
| Manufacturer | ams |
| Description | SENSOR ANGLE 360DEG SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.738 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AS5055A-BQFM | Manufacturer | ams |
|---|---|---|---|
| Description | SENSOR ANGLE 360DEG SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21337 pcs | Data sheet | AS5055A |
| Category | Sensors, Transducers | Voltage - Supply | 3 V ~ 3.6 V |
| Termination Style | SMD (SMT) Tab | Technology | Hall Effect |
| Supplier Device Package | 16-QFN (4x4) | Series | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | Resistance Tolerance | - |
| Packaging | Tape & Reel (TR) | Package / Case | 16-VQFN Exposed Pad |
| Output Signal | - | Output | SPI |
| Other Names | 192660006 AS5055A-BQFMTR |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Linearity | ±1.41° | Linear Range | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | For Measuring | Angle |
| Detailed Description | Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab | Actuator Type | External Magnet, Not Included |
