Home > Products > Integrated Circuits (ICs) > Data Acquisition - Analog to Digital Converters (A > AS1543-BQFT

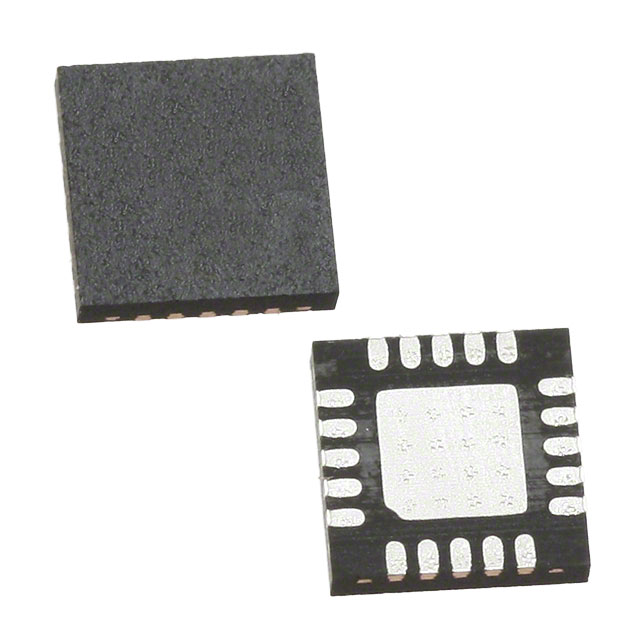

AS1543-BQFT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS1543-BQFT with confidence from Components-World.HK, 1 Year Warranty

Dowload AS1543-BQFT Details in PDF

Request a Quote

Part Number	AS1543-BQFT
Manufacturer	ams
Description	IC ADC 12BIT 8CH 1M 20-TQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5580 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	AS1543-BQFT	Manufacturer	ams
Description	IC ADC 12BIT 8CH 1M 20-TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5580 pcs	Data sheet	AS1543,44
Category	Integrated Circuits (ICs)	Voltage - Supply, Digital	2.7 V ~ 5.25 V
Voltage - Supply, Analog	2.7 V ~ 5.25 V	Supplier Device Package	20-TQFN (4x4)
Series	-	Sampling Rate (Per Second)	1M
Reference Type	External	Ratio - S/H:ADC	1:1
Packaging	Cut Tape (CT)	Package / Case	20-WQFN Exposed Pad
Other Names	AS1543-BQFTCT AS1543BQFT	Operating Temperature	-40°C ~ 85°C
Number of Inputs	4, 8	Number of Bits	12
Number of A/D Converters	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Differential, Single Ended
Features	-	Detailed Description	12 Bit Analog to Digital Converter 4, 8 Input 1 SAR 20-TQFN (4x4)
Data Interface	SPI, DSP	Configuration	MUX-S/H-ADC
Architecture	SAR
