Home > Products > Integrated Circuits (ICs) > Embedded - Microcontroller, Microprocessor, FPGA M > EZ80F920120MOD

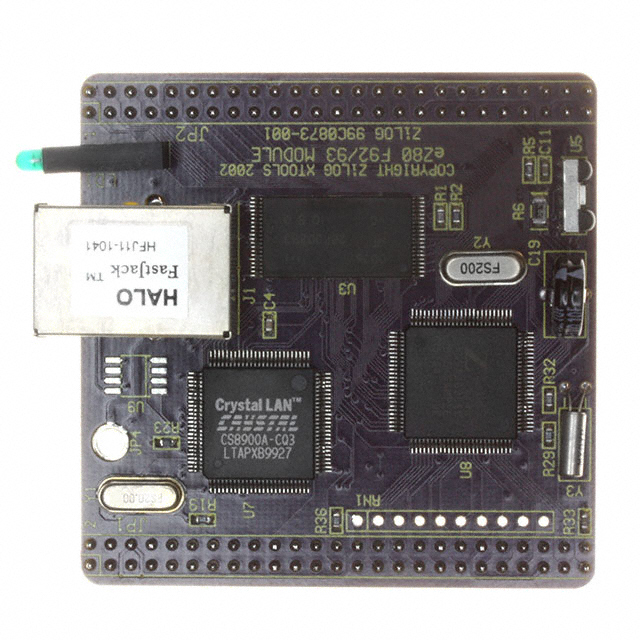

EZ80F920120MOD

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EZ80F920120MOD with confidence from Components-World.HK, 1 Year Warranty

Dowload EZ80F920120MOD Details in PDF

Request a Quote

Part Number	EZ80F920120MOD
Manufacturer	Zilog
Description	MODULE EZ80F92 512K 20MHZ
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 1539 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$24.692

Product parameter
Data sheet

Product parameter

Part Number	EZ80F920120MOD	Manufacturer	Zilog
Description	MODULE EZ80F92 512K 20MHZ	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1539 pcs	Data sheet	EZ80F920120MOD Brief EZ80F920120MOD Specification
Category	Integrated Circuits (ICs)	Speed	20MHz
Size / Dimension	2.5" x 2.5" (64mm x 64mm)	Series	eZ80® Acclaim!®
RAM Size	8KB (Internal), 512KB (External)	Other Names	269-3157 EZ80F920120MOD-ND
Operating Temperature	0°C ~ 70°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Module/Board Type	MCU Core	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Flash Size	128KB (Internal), 1MB (External)
Detailed Description	eZ80® Acclaim!® Embedded Module eZ80F92 20MHz 8KB (Internal), 512KB (External) 128KB (Internal), 1MB (External)	Core Processor	eZ80F92
Connector Type	Header 2x25	Co-Processor	-
