PF0805FRM7P0R02L

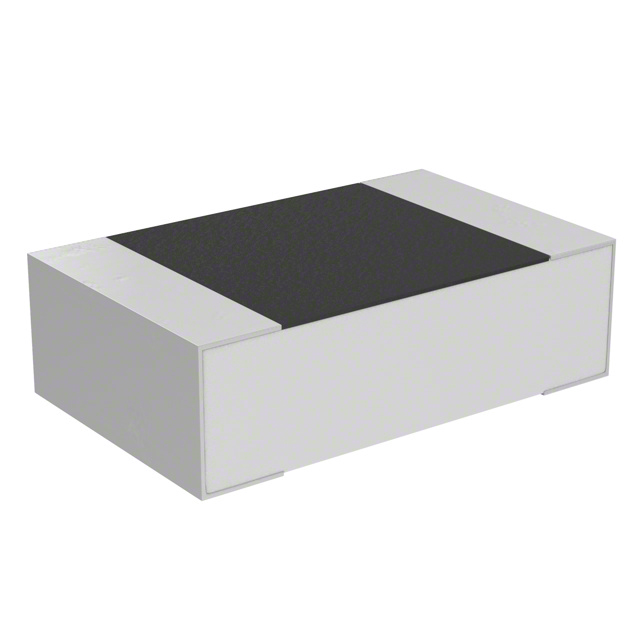

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PF0805FRM7P0R02L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PF0805FRM7P0R02L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PF0805FRM7P0R02L |
|---|---|
| Manufacturer | Yageo |
| Description | RES 0.02 OHM 1% 1/8W 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.291 | $0.251 | $0.221 | $0.202 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.175 | $0.152 | $0.126 | $0.103 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PF0805FRM7P0R02L | Manufacturer | Yageo |
|---|---|---|---|
| Description | RES 0.02 OHM 1% 1/8W 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 188096 pcs | Data sheet | Chip Resistors BrochurePR, PF & PH Series Datasheet |
| Category | Resistors | Tolerance | ±1% |
| Temperature Coefficient | ±75ppm/°C | Supplier Device Package | 0805 |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) | Series | PF |
| Resistance | 20 mOhms | Power (Watts) | 0.125W, 1/8W |
| Packaging | Cut Tape (CT) | Package / Case | 0805 (2012 Metric) |
| Other Names | 0.02NTCT 0.02NTCT-ND 311-0.02NTCT |
Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.018" (0.45mm) | Features | Current Sense, Moisture Resistant |
| Failure Rate | - | Detailed Description | 20 mOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Current Sense, Moisture Resistant Metal Foil |
| Composition | Metal Foil |
