Home > Products > Resistors > Resistor Networks, Arrays > AF164-JR-07470RL

AF164-JR-07470RL

AF164-JR-07470RL

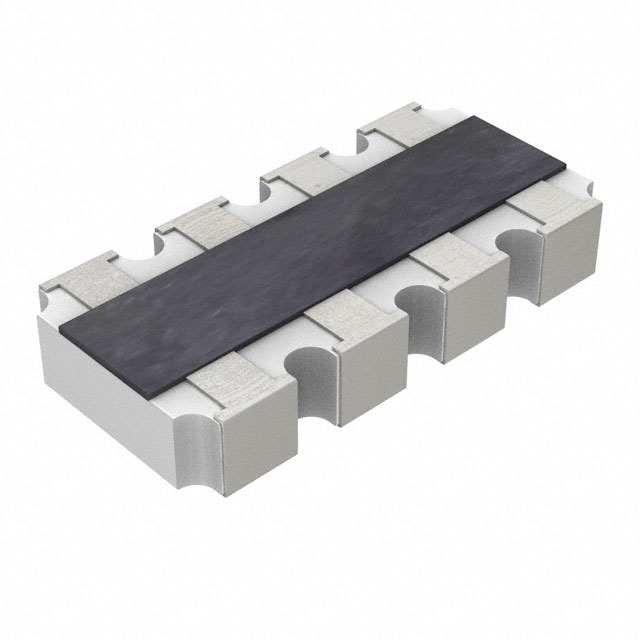

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AF164-JR-07470RL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AF164-JR-07470RL
Manufacturer	Yageo
Description	RES ARRAY 4 RES 470 OHM 1206
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2724995 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.009

Product parameter
Data sheet

Product parameter

Part Number	AF164-JR-07470RL	Manufacturer	Yageo
Description	RES ARRAY 4 RES 470 OHM 1206	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2724995 pcs	Data sheet	AF122,4, AF162,4 Series
Category	Resistors	Tolerance	±5%
Temperature Coefficient	±250ppm/°C	Supplier Device Package	1206
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)	Series	AF164
Resistor-Ratio-Drift	-	Resistor Matching Ratio	-
Resistance (Ohms)	470	Power Per Element	62.5mW
Packaging	Tape & Reel (TR)	Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Operating Temperature	-55°C ~ 155°C	Number of Resistors	4
Number of Pins	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.028" (0.70mm)
Detailed Description	470 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±250ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals	Circuit Type	Isolated
Applications	DDRAM, SDRAM
