Home > Products > Power Supplies - Board Mount > DC DC Converters > RDE03110S15

RDE03110S15

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RDE03110S15 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RDE03110S15
Manufacturer	XP Power
Description	DC DC CONVERTER 15V 3W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3922 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs	100 pcs
Reference Price (In US Dollars)	$12.001	$11.641	$11.281	$10.801	$10.081

Product parameter
Data sheet

Product parameter

Part Number	RDE03110S15	Manufacturer	XP Power
Description	DC DC CONVERTER 15V 3W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3922 pcs	Data sheet	RDE03 Series Datasheet
Category	Power Supplies - Board Mount	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	15V	Voltage - Isolation	3kV
Voltage - Input (Min)	40V	Voltage - Input (Max)	160V
Type	Isolated Module	Supplier Device Package	-
Size / Dimension	1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 11.9mm)	Series	RDE03
Power (Watts)	3W	Package / Case	24-DIP Module, 7 Leads
Other Names	1470-4571	Operating Temperature	-40°C ~ 105°C (With Derating)
Number of Outputs	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	OCP, SCP, UVLO
Efficiency	84%	Detailed Description	Isolated Module DC DC Converter 1 Output 15V 200mA 40V - 160V Input
Current - Output (Max)	200mA	Control Features	-
Applications	Railway

Related products
Related news

Related products

RDE0348D12 Image

Part#:~~RDE0348D12~~
Manufacturers:~~XP Power~~
Description:~~DC DC CONVERTER +/-12V 3W~~
In Stock:~~3463~~

~~$10.972/pcs~~RFQ

RDE0348S05 Image

Part#:~~RDE0348S05~~
Manufacturers:~~XP Power~~
Description:~~DC DC CONVERTER 5V 3W~~
In Stock:~~3834~~

~~$10.28/pcs~~RFQ

RDE03110D15 Image

Part#:~~RDE03110D15~~
Manufacturers:~~XP Power~~
Description:~~DC DC CONVERTER +/-15V 3W~~
In Stock:~~2956~~

~~$11.135/pcs~~RFQ

RDE5C1H100J0S1H03A Image

Part#:~~RDE5C1H100J0S1H03A~~
Manufacturers:~~Murata Electronics~~
Description:~~CAP CER 10PF 50V C0G/NP0 RADIAL~~
In Stock:~~592051~~

~~$0.037/pcs~~RFQ

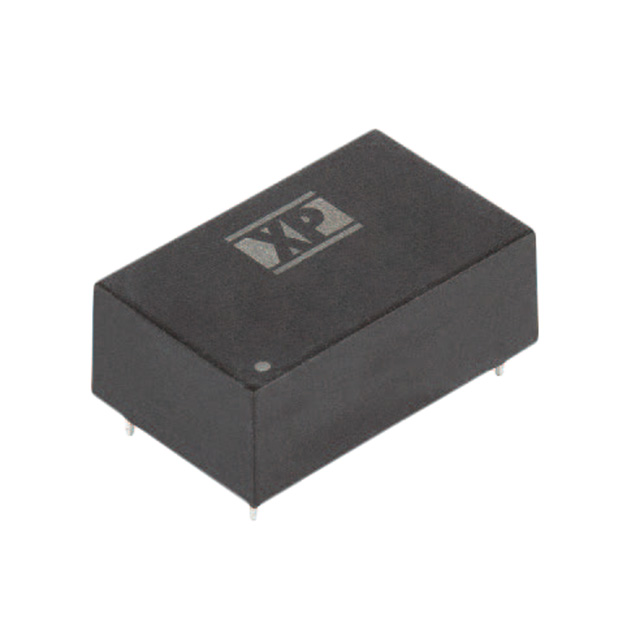

RDE03110S05 Image
