JTH1524D15

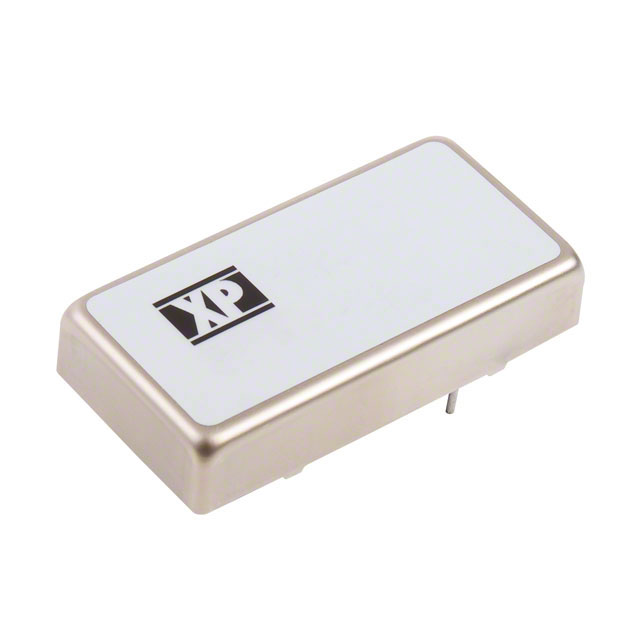

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JTH1524D15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JTH1524D15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JTH1524D15 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-15V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $14.814 | $14.37 | $13.926 | $13.333 | $12.444 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JTH1524D15 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2681 pcs | Data sheet | JTH Series, 15 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -15V | Voltage - Output 1 | 15V |
| Voltage - Isolation | 1.5kV | Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V | Type | Isolated Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Series | JTH |
| Power (Watts) | 15W | Packaging | Tube |
| Package / Case | 6-DIP Module | Other Names | 1470-2109-5 |
| Operating Temperature | -40°C ~ 100°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, OVP, SCP, UVLO | Efficiency | 86% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input | Current - Output (Max) | 500mA, 500mA |
| Applications | ITE (Commercial) |
