JTF1548D05

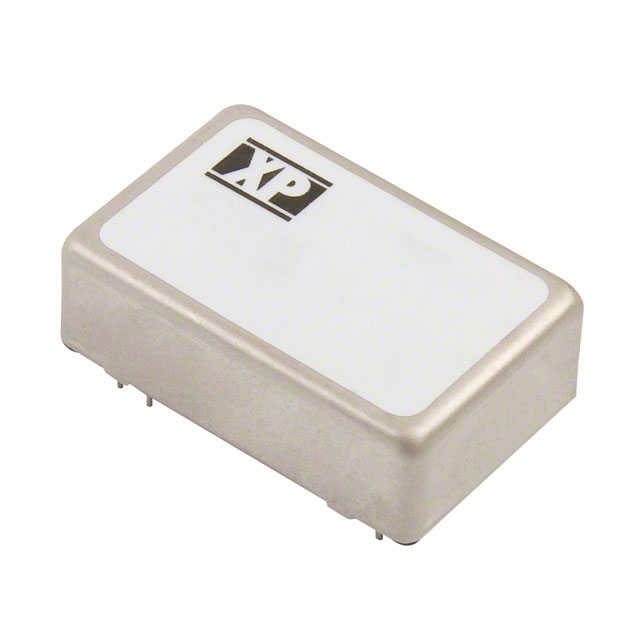

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JTF1548D05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JTF1548D05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JTF1548D05 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-5V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $12.35 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JTF1548D05 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-5V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2936 pcs | Data sheet | JTF Series, 8-15 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -5V | Voltage - Output 1 | 5V |
| Voltage - Isolation | 1.6kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V | Type | Isolated Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Series | JTF |
| Power (Watts) | 15W | Packaging | Tube |
| Package / Case | 24-DIP Module, 9 Leads | Operating Temperature | -40°C ~ 105°C |
| Number of Outputs | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Remote On/Off, OCP, OVP, SCP |
| Efficiency | 86% | Detailed Description | Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 18V - 75V Input |
| Current - Output (Max) | 1.5A, 1.5A | Control Features | Enable, Active High |
| Applications | ITE (Commercial) |
