JSE0812D15

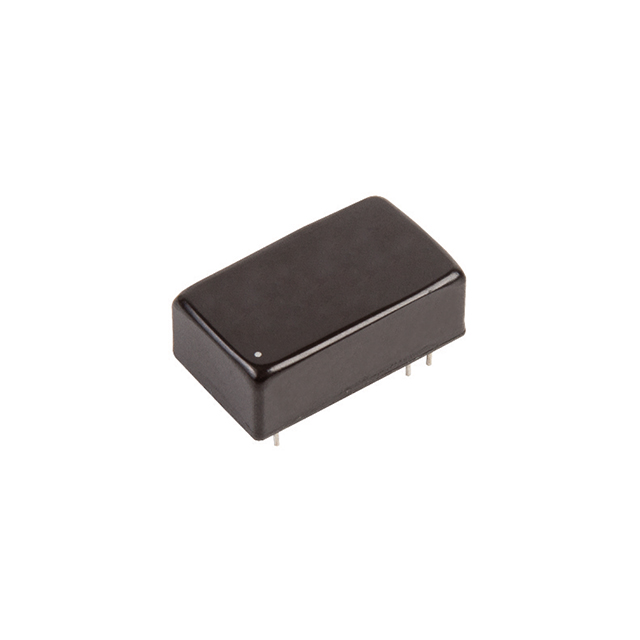

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JSE0812D15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JSE0812D15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JSE0812D15 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-15V 8W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $10.026 | $9.725 | $9.424 | $9.023 | $8.422 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JSE0812D15 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 8W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4092 pcs | Data sheet | JSE08 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -15V | Voltage - Output 1 | 15V |
| Voltage - Isolation | 1.5kV | Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V | Type | Isolated Module |
| Size / Dimension | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | Series | JSE08 |
| Power (Watts) | 8W | Packaging | Tube |
| Package / Case | 16-DIP Module, 6 Leads | Other Names | 1470-3542 |
| Operating Temperature | -40°C ~ 105°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | SCP, UVLO | Efficiency | 84% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 9V - 18V Input | Current - Output (Max) | 265mA, 265mA |
| Applications | ITE (Commercial) |
