JCM3012D15

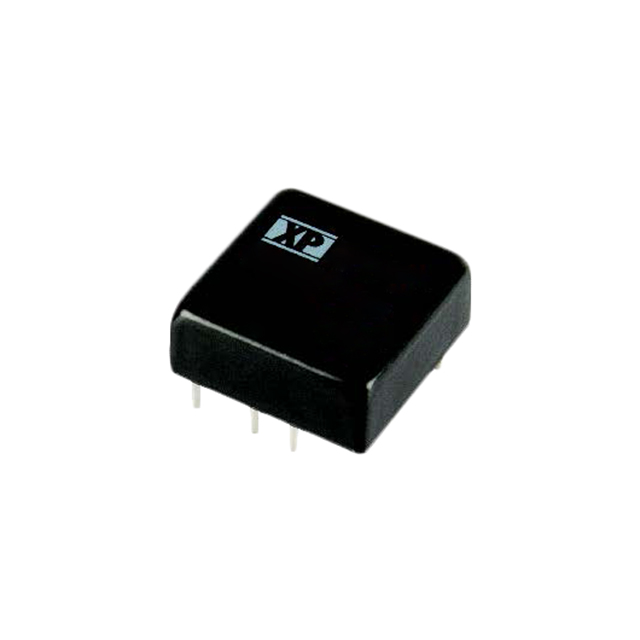

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JCM3012D15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JCM3012D15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JCM3012D15 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-15V 30W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $14.788 | $14.344 | $13.90 | $13.309 | $12.514 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JCM3012D15 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 30W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2712 pcs | Data sheet | JCM30 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -15V | Voltage - Output 1 | 15V |
| Voltage - Isolation | 1.6kV | Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V | Type | Isolated Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | Series | JCM30 |
| Power (Watts) | 30W | Packaging | Tube |
| Package / Case | 6-DIP Module | Other Names | 1470-3706 |
| Operating Temperature | -40°C ~ 100°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OVP, SCP | Efficiency | 90% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 18V Input | Current - Output (Max) | 1A, 1A |
| Control Features | Enable, Active High | Applications | ITE (Commercial) |
