JCG1524D15

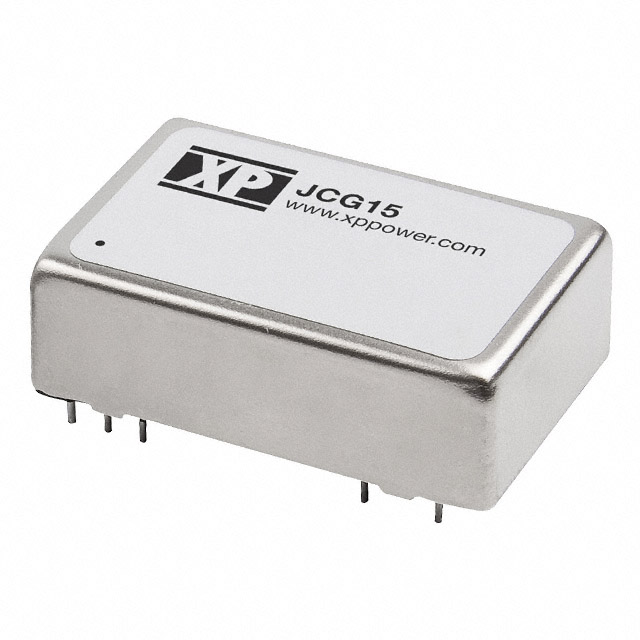

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JCG1524D15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JCG1524D15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JCG1524D15 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-15V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $11.349 | $11.008 | $10.668 | $10.214 | $9.533 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JCG1524D15 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3790 pcs | Data sheet | JCG Series, 12 & 15 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -15V | Voltage - Output 1 | 15V |
| Voltage - Isolation | 1.6kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V | Type | Isolated Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Series | JCG |
| Power (Watts) | 15W | Packaging | Tube |
| Package / Case | 24-DIP Module, 9 Leads | Other Names | 1470-1960-5 |
| Operating Temperature | -40°C ~ 100°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO | Efficiency | 90% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 18V - 36V Input | Current - Output (Max) | 500mA, 500mA |
| Control Features | Enable, Active High | Applications | ITE (Commercial) |
