JCD0424S3V3

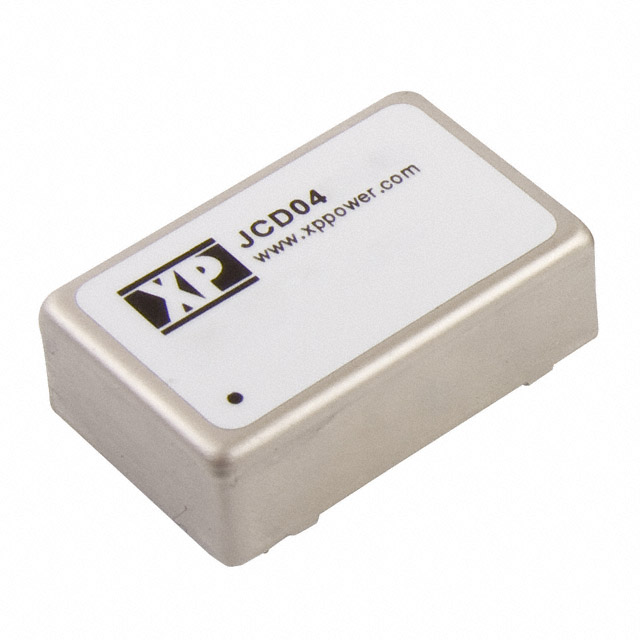

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JCD0424S3V3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JCD0424S3V3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JCD0424S3V3 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER 3.3V 4W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $6.583 | $6.386 | $6.188 | $5.925 | $5.53 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JCD0424S3V3 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER 3.3V 4W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7042 pcs | Data sheet | JCD Series, 4-6 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 3.3V |
| Voltage - Isolation | 1.6kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V | Type | Isolated Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | Series | JCD |
| Power (Watts) | 4W | Packaging | Tube |
| Package / Case | 24-DIP Module, 7 Leads | Other Names | 1470-1863-5 |
| Operating Temperature | -40°C ~ 100°C | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, OVP, SCP | Efficiency | 77% |
| Detailed Description | Isolated Module DC DC Converter 1 Output 3.3V 1.2A 18V - 36V Input | Current - Output (Max) | 1.2A |
| Applications | ITE (Commercial) |
