JCA0205D03

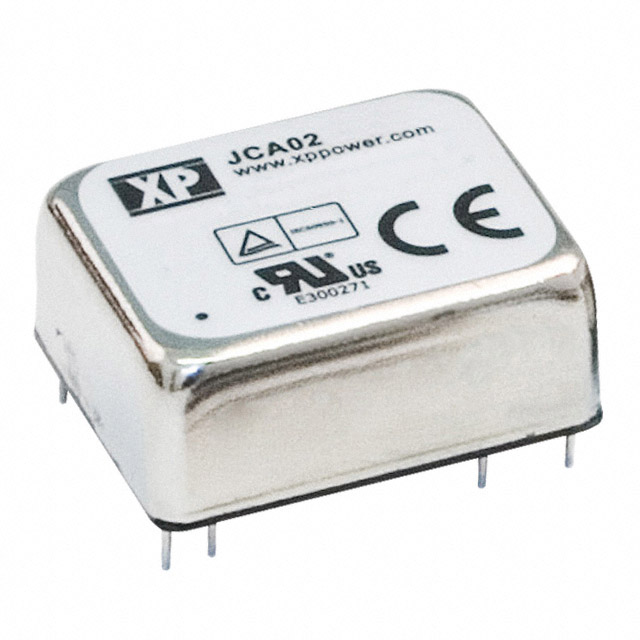

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JCA0205D03 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JCA0205D03 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JCA0205D03 |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-15V 2W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $6.625 | $6.426 | $6.227 | $5.962 | $5.565 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JCA0205D03 | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 2W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5338 pcs | Data sheet | JCA Series, 2 & 3 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -15V | Voltage - Output 1 | 15V |
| Voltage - Isolation | 1.5kV | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V | Type | Isolated Module |
| Size / Dimension | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | Series | JCA |
| Power (Watts) | 2W | Packaging | Tube |
| Package / Case | 24-DIP Module, 8 Leads | Other Names | 1470-1658-5 |
| Operating Temperature | -40°C ~ 100°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, OVP, SCP, UVLO | Efficiency | 70% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 70mA, 70mA 4.5V - 9V Input | Current - Output (Max) | 70mA, 70mA |
| Applications | ITE (Commercial) |
