IH0505D

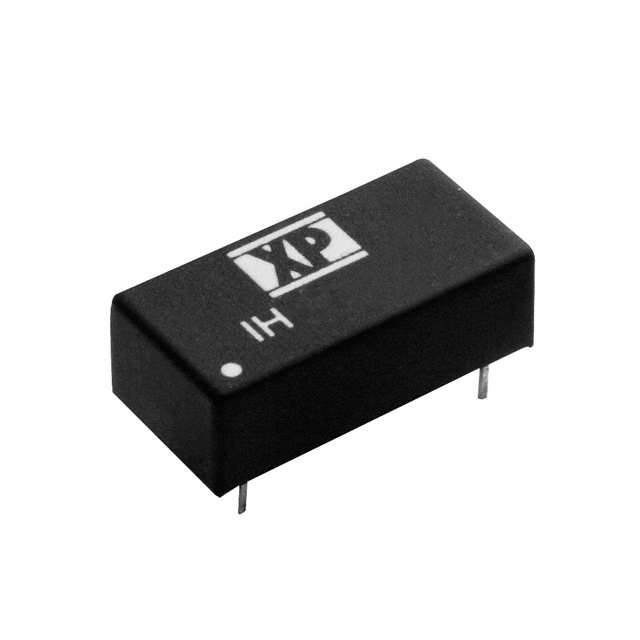

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IH0505D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IH0505D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IH0505D |
|---|---|
| Manufacturer | XP Power |
| Description | DC DC CONVERTER +/-5V 2W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.524 | $2.448 | $2.372 | $2.271 | $2.12 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IH0505D | Manufacturer | XP Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-5V 2W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15146 pcs | Data sheet | IH Series, 2 W Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -5V | Voltage - Output 1 | 5V |
| Voltage - Isolation | 1kV | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V | Type | Isolated Module |
| Size / Dimension | 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm) | Series | IH |
| Power (Watts) | 2W | Packaging | Tube |
| Package / Case | 6-DIP Module | Other Names | 1470-1438-5 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Efficiency | 72% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 5.5V Input | Current - Output (Max) | 200mA, 200mA |
| Control Features | - | Applications | ITE (Commercial) |
