ECL15UT03-P

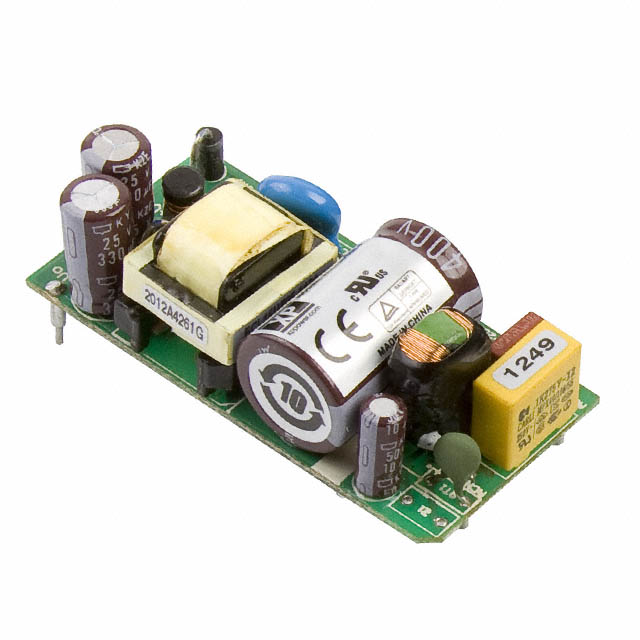

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECL15UT03-P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECL15UT03-P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECL15UT03-P |
|---|---|
| Manufacturer | XP Power |
| Description | AC/DC CONVERTER 5V +/-15V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 100 pcs |
|---|---|---|---|---|---|
| $13.701 | $13.29 | $12.879 | $12.331 | $11.509 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECL15UT03-P | Manufacturer | XP Power |
|---|---|---|---|
| Description | AC/DC CONVERTER 5V +/-15V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3422 pcs | Data sheet | ECL Series, 5-30W |
| Category | Power Supplies - Board Mount | Weight | 0.088 lb (39.92g) |
| Voltage - Output 4 | - | Voltage - Output 3 | -15V |
| Voltage - Output 2 | 15V | Voltage - Output 1 | 5V |
| Voltage - Input | 85 ~ 264 VAC | Type | Open Frame |
| Size / Dimension | 2.44" L x 1.21" W x 0.96" H (62.0mm x 30.7mm x 24.4mm) | Series | ECL |
| Power (Watts) | 15W | Package / Case | 7-DIP Module |
| Other Names | 1470-1186 | Operating Temperature | -20°C ~ 70°C (With Derating) |
| Number of Outputs | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Load Regulation | ±1% | Line Regulation | ±0.5% |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OVP, SCP |
| Efficiency | 81% | Detailed Description | Open Frame AC DC Converter 3 Output 5V 15V -15V 2A, 150mA, 150mA 85 ~ 264 VAC Input |
| Current - Output (Max) | 2A, 150mA, 150mA | Approvals | CSA, cUL, EN, IEC, UL |
| Applications | ITE (Commercial) |
