749118215

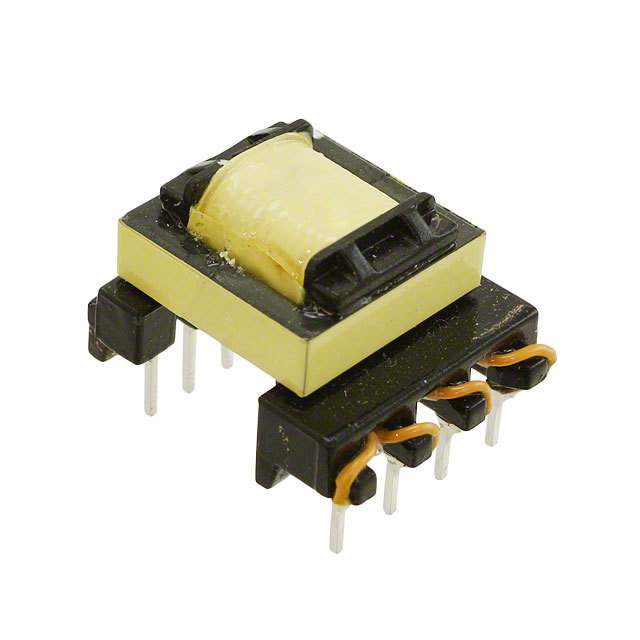

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 749118215 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 749118215 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 749118215 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TRANSFORMER OFF LINE 4000V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 108 pcs | ||||
|---|---|---|---|---|---|
| $2.246 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 749118215 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TRANSFORMER OFF LINE 4000V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17255 pcs | Data sheet | 749118215 Spec |
| Category | Transformers | Voltage - Primary | 120 ~ 385V |
| Voltage - Isolation | 4000Vrms | Voltage - Auxiliary | - |
| Type | For AC/DC Converters | Size / Dimension | 0.795" L x 0.965" W (20.20mm x 24.50mm) |
| Series | WE-UNIT | Packaging | Tray |
| Other Names | 732-3622 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | NCP101x, NCP105x | Inductance @ Frequency | 900µH @ 10kHz |
| Height - Seated (Max) | 0.650" (16.50mm) | Frequency | 132kHz |
| Footprint | 0.795" L x 0.965" W (20.20mm x 24.50mm) | Chipset Manufacturer | On Semiconductor |
| Applications | LED Drivers, AC/DC SMPS |
