7448845100

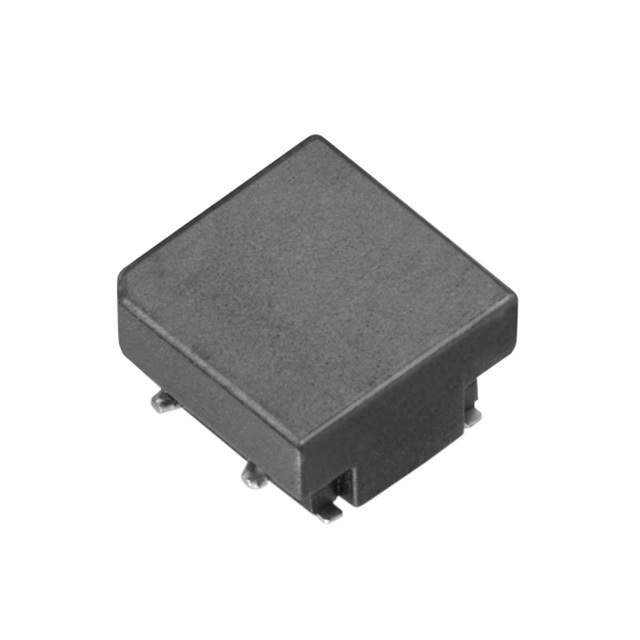

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7448845100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7448845100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7448845100 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | INDUCTOR ARRAY 2 COIL 10UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.78 | $0.76 | $0.694 | $0.641 | $0.592 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 7448845100 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | INDUCTOR ARRAY 2 COIL 10UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64486 pcs | Data sheet | 7448845100 Drawing |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | Shielding | Shielded |
| Series | WE-CPIB HV | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 732-11688-1 |
| Operating Temperature | -40°C ~ 125°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Parallel | 10µH | Height | 0.118" (3.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array Inductance - Connected in Series 10µH Inductance - Connected in Parallel 270 mOhm DC Resistance (DCR) - Parallel 1.2A Nonstandard | DC Resistance (DCR) - Series | - |
| DC Resistance (DCR) - Parallel | 270 mOhm | Current Saturation - Parallel | 1.55A |
| Current Rating - Parallel | 1.2A |
