744776022A

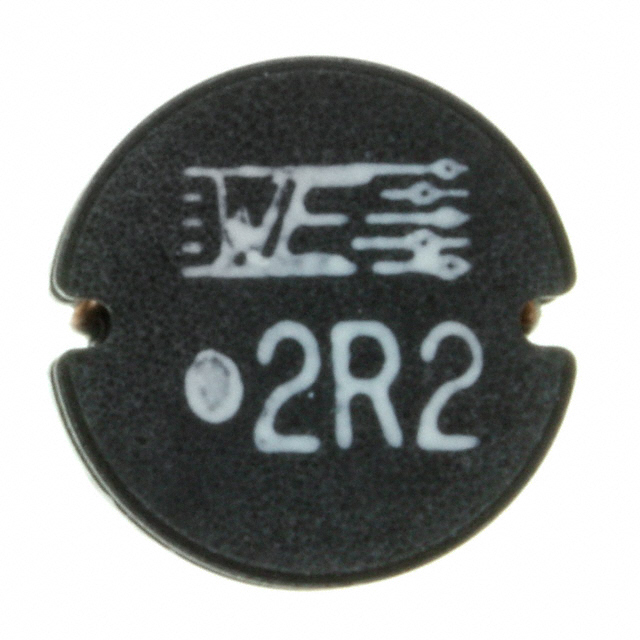

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 744776022A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 744776022A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 744776022A |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | FIXED IND 2.2UH 5.4A 20 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $0.581 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 744776022A | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | FIXED IND 2.2UH 5.4A 20 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52129 pcs | Data sheet | 744776022A |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.374" L x 0.374" W (9.50mm x 9.50mm) | Shielding | Unshielded |
| Series | WE-PD2 | Ratings | - |
| Q @ Freq | 35 @ 7.96MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 732-1294-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.228" (5.80mm) | Frequency - Self Resonant | 68MHz |
| Detailed Description | 2.2µH Unshielded Wirewound Inductor 5.4A 20 mOhm Max Nonstandard | DC Resistance (DCR) | 20 mOhm Max |
| Current Rating | 5.4A | Current - Saturation | - |
