74477520

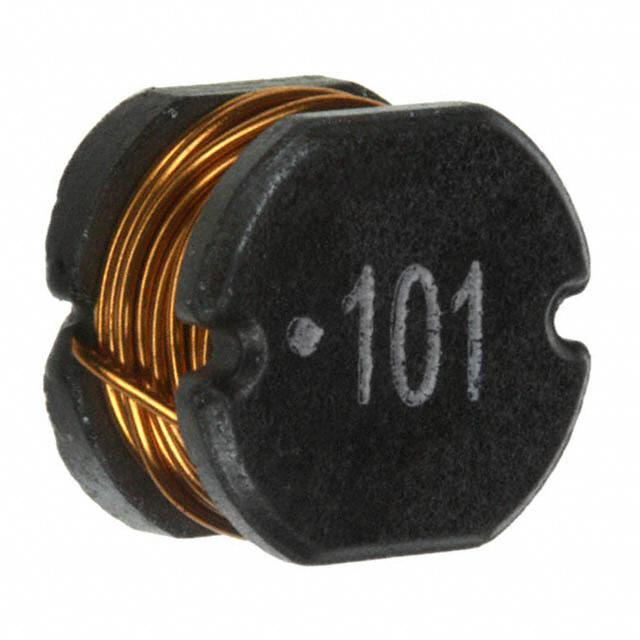

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74477520 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 74477520 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 74477520 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | FIXED IND 100UH 770MA 430 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.528 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 74477520 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | FIXED IND 100UH 770MA 430 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60788 pcs | Data sheet | 74477520 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | Shielding | Unshielded |
| Series | WE-PD2 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 732-1292-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 100µH |
| Height - Seated (Max) | 0.217" (5.50mm) | Frequency - Self Resonant | 8MHz |
| Detailed Description | 100µH Unshielded Wirewound Inductor 770mA 430 mOhm Max Nonstandard | DC Resistance (DCR) | 430 mOhm Max |
| Current Rating | 770mA | Current - Saturation | 860mA |
