694102303002

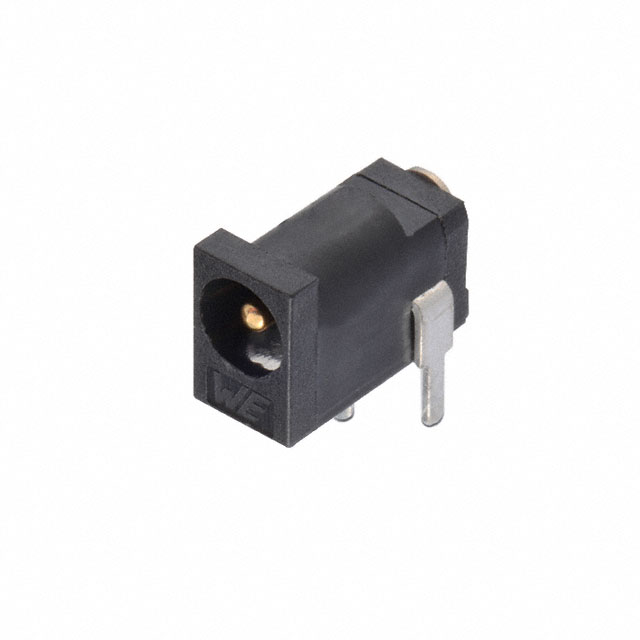

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 694102303002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 694102303002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 694102303002 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN PWR JACK 1.05X3.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.30 | $0.283 | $0.253 | |||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.233 | $0.202 | $0.172 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 694102303002 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN PWR JACK 1.05X3.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 131886 pcs | Data sheet | 6941xx303002 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 30VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | WR-DC |
| Packaging | Bulk | Other Names | 732-5922 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.354" (9.00mm) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 1.05mm ID (0.041"), 3.50mm OD (0.138") | Includes | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Gender | Male |
| Features | - | Detailed Description | Power Barrel Connector Jack 1.05mm ID (0.041"), 3.50mm OD (0.138") Through Hole, Right Angle |
| Current Rating | 2A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.041" (1.05mm ID), 0.165" (4.20mm OD) |
