Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > 691414720002B

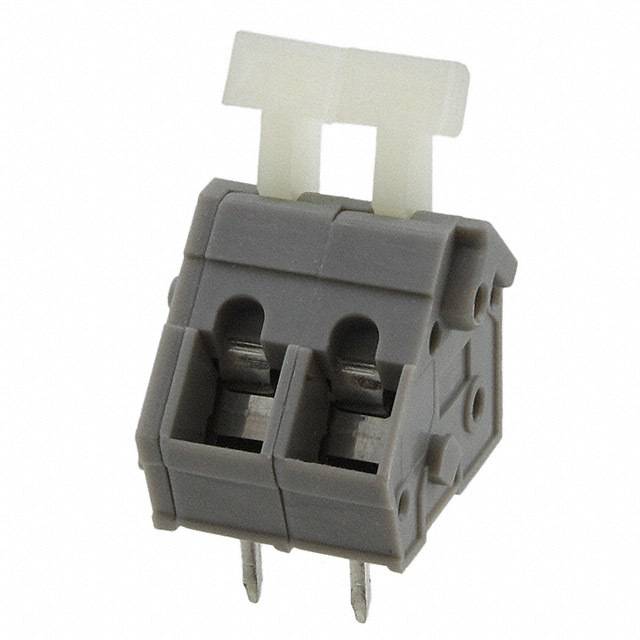

691414720002B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 691414720002B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	691414720002B
Manufacturer	Wurth Electronics
Description	TERM BLOCK 45DEG 2POS 5MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	500 pcs	1000 pcs
~~In Stock~~ 76161 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs
	$0.675	$0.665	$0.618
	$0.57	$0.523	$0.475

Product parameter
Data sheet

Product parameter

Part Number	691414720002B	Manufacturer	Wurth Electronics
Description	TERM BLOCK 45DEG 2POS 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76161 pcs	Data sheet	6914147200xx Drawing
Category	Connectors, Interconnects	Wire Termination	Screwless - Push Button Clamp
Wire Gauge	12-28 AWG	Voltage	300V
Torque - Screw	-	Series	WR-TBL Series 4147
Screw Thread	-	Screw Material - Plating	-
Positions Per Level	2	Pitch	0.197" (5.00mm)
Packaging	Bulk	Other Names	732-4481
Operating Temperature	-40°C ~ 105°C	Number of Levels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Orientation	45° (135°) Angle with Board	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA66), Nylon 6/6
Features	-	Detailed Description	2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Current	15A	Contact Material - Plating	Brass
Color	Gray	Clamp Material - Plating	Steel, Stainless
