Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > 691412420007

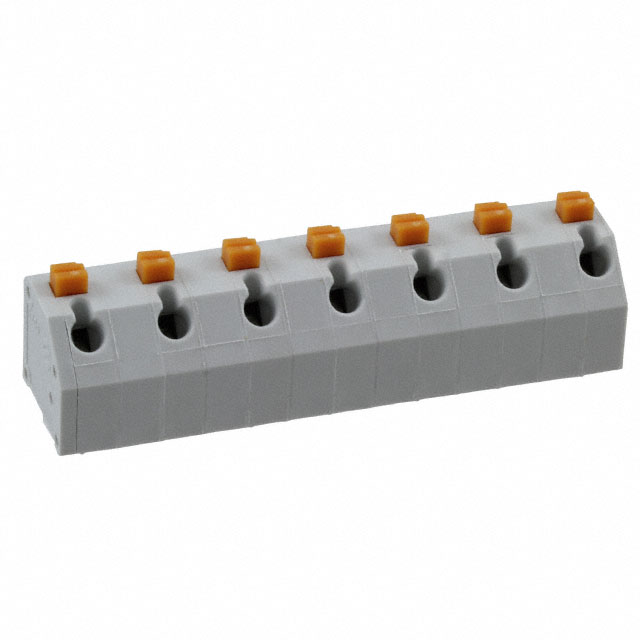

691412420007

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 691412420007 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	691412420007
Manufacturer	Wurth Electronics
Description	TERM BLOCK 7POS 45DEG 7.62MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22012 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$2.14	$1.872	$1.696	$1.516	$1.428

Product parameter
Data sheet

Product parameter

Part Number	691412420007	Manufacturer	Wurth Electronics
Description	TERM BLOCK 7POS 45DEG 7.62MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22012 pcs	Data sheet	691412420007 Drawing
Category	Connectors, Interconnects	Wire Termination	Screwless
Wire Gauge	16-30 AWG	Voltage	300V
Torque - Screw	-	Series	WR-TBL Series 4124
Screw Thread	-	Screw Material - Plating	-
Positions Per Level	7	Pitch	0.300" (7.62mm)
Packaging	Bulk	Other Names	732-11152
Operating Temperature	-	Number of Levels	1
Mounting Type	Through Hole, Kinked Pin	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Orientation	45° (135°) Angle with Board	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA66), Nylon 6/6
Features	-	Detailed Description	7 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.300" (7.62mm) Through Hole, Kinked Pin
Current	4A	Contact Material - Plating	Phosphor Bronze - Tin Plated
Color	Gray	Clamp Material - Plating	Phosphor Bronze
