691305340003

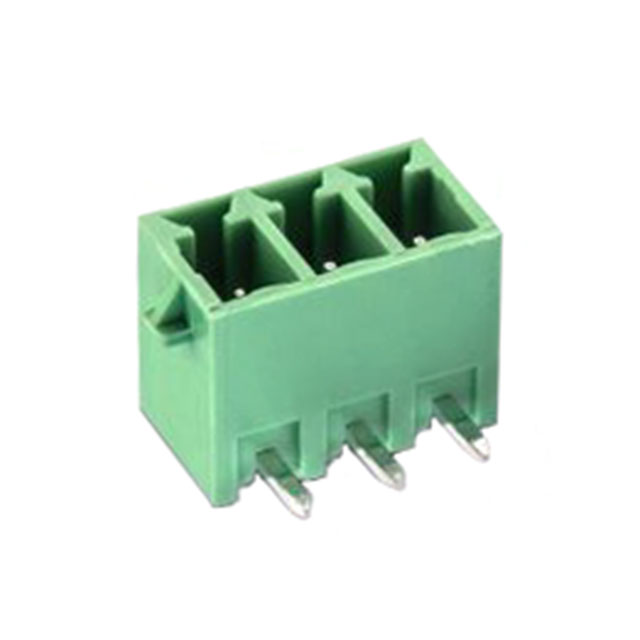

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 691305340003 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 691305340003 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 691305340003 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TERM BLOCK HEADER 3POS 90 3.8MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.303 | $0.267 | $0.242 | $0.217 | $0.202 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 691305340003 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK HEADER 3POS 90 3.8MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118716 pcs | Data sheet | 691305340003 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | WR-TBL 3053 | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 732-11078 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.283" (7.19mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | 90°, Right Angle | Features | Locking Ramp |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole | Current - UL | 12A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
