691247610003

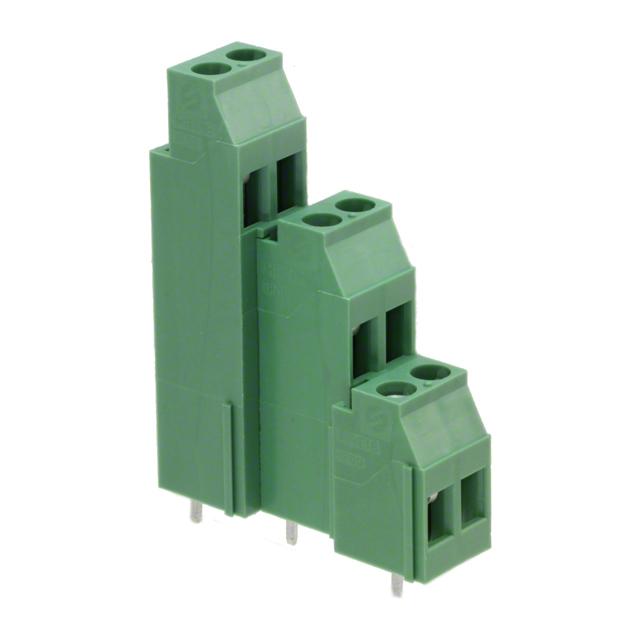

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 691247610003 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 691247610003 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 691247610003 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TERM BLOCK 1POS SIDE ENTRY PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $2.383 | $2.088 | $1.886 | $1.688 | $1.591 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 691247610003 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK 1POS SIDE ENTRY PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19347 pcs | Data sheet | 691247610003 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-30 AWG | Voltage | 300V |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Series | WR-TBL Series 2476 |
| Screw Thread | M3 | Screw Material - Plating | Zinc Plated |
| Positions Per Level | 1 | Pitch | - |
| Packaging | Bulk | Other Names | 732-11025 |
| Operating Temperature | -30°C ~ 120°C | Number of Levels | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 1 Position Wire to Board Terminal Block Horizontal with Board Through Hole |
| Current | 20A | Contact Material - Plating | Copper Alloy - Nickel Plated |
| Color | Green | Clamp Material - Plating | Copper Alloy |
