690357100672

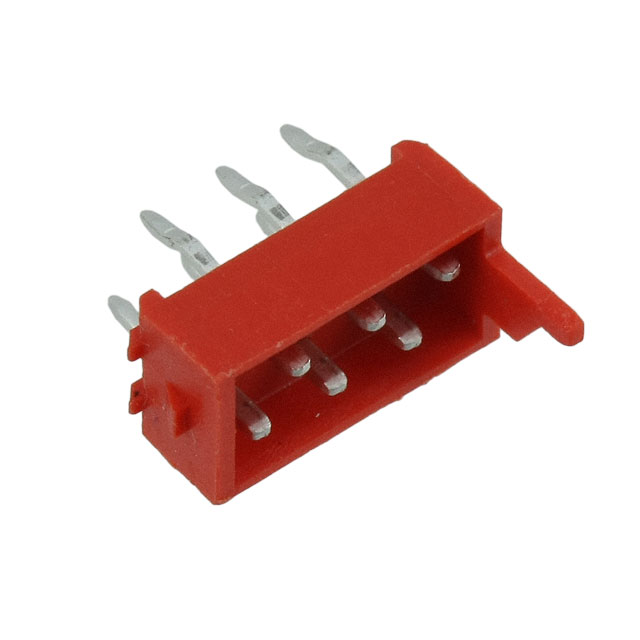

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690357100672 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690357100672 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690357100672 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN 2.54MM MALE STR PCB TH 6P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.224 | $0.215 | $0.207 | $0.199 | $0.178 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 690357100672 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN 2.54MM MALE STR PCB TH 6P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123485 pcs | Data sheet | 69035710xx7x DrawingMiniModule Conn WR-MM |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | WR-MM |
| Row Spacing - Mating | 0.059" (1.50mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 732-1983-5 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | 1.5A per Contact | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
