687330124422

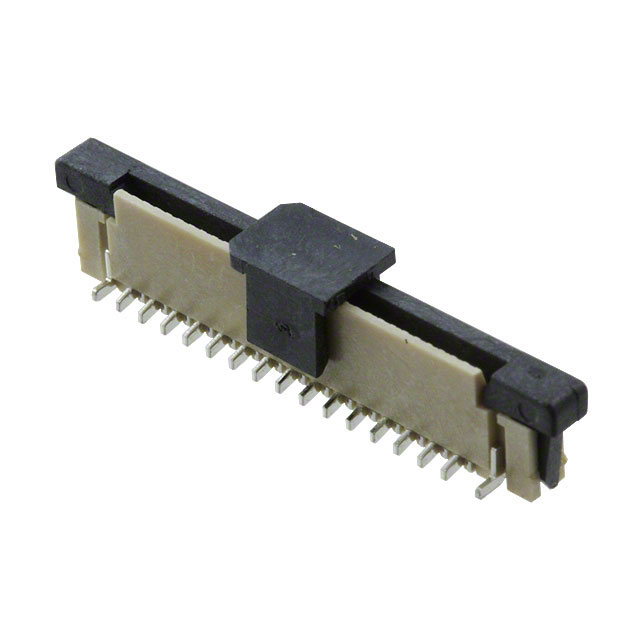

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 687330124422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 687330124422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 687330124422 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN FPC VERT 30POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.818 | $0.752 | $0.698 | $0.604 | $0.577 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 687330124422 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FPC VERT 30POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66387 pcs | Data sheet | WR-FPC,FFC Series Flyer6873xx124422 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | 732-3506-6 | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Ivory |
| Height Above Board | 0.169" (4.30mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Detailed Description | 30 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Black |
