687126183722

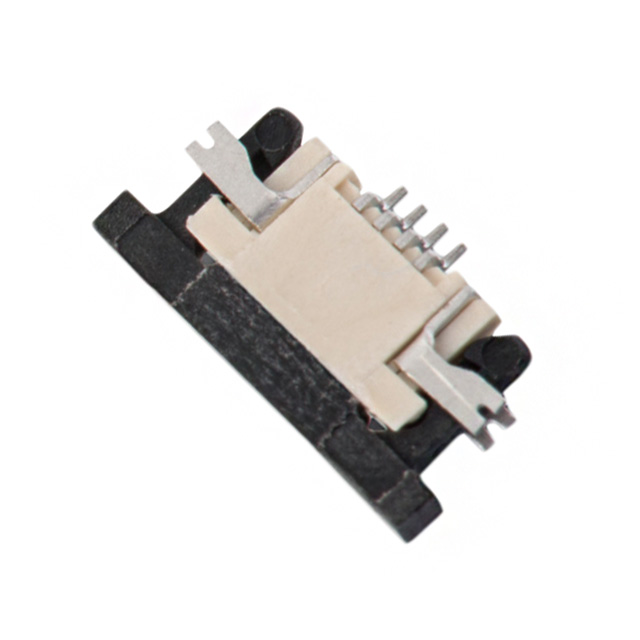

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 687126183722 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 687126183722 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 687126183722 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN FFC BTM 26POS 0.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $0.916 | $0.766 | $0.672 | $0.611 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 687126183722 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FFC BTM 26POS 0.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56148 pcs | Data sheet | WR-FPC,FFC Series Flyer687126183722 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 732-11354-1 | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 26 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Ivory |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FFC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 26 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.4A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 120.0µin (3.05µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Color | Black |
