687108182122

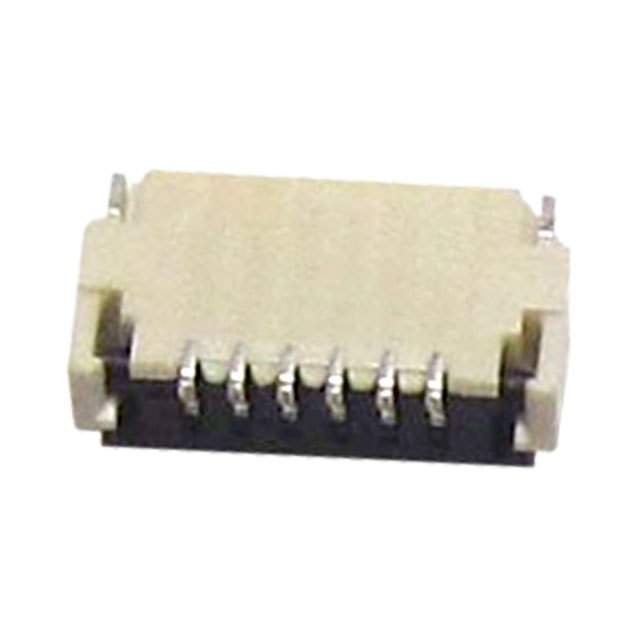

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 687108182122 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 687108182122 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 687108182122 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN FFC FPC 8POS 0.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 500 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $0.498 | $0.416 | $0.366 | $0.30 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 687108182122 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FFC FPC 8POS 0.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66844 pcs | Data sheet | WR-FPC,FFC Series Flyer687108182122 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | 732-10016-6 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Ivory |
| Height Above Board | 0.037" (0.95mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.31mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 80.0µin (2.03µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA9T), Nylon 9T |
| Actuator Color | Black |
