68611814422

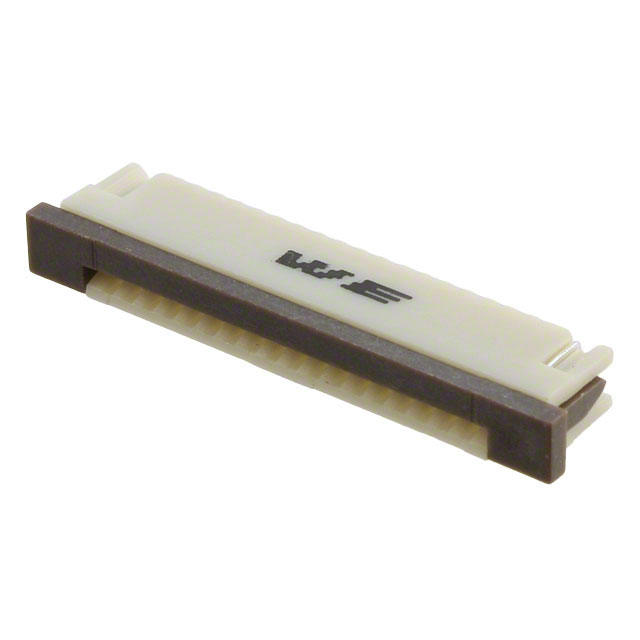

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 68611814422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 68611814422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 68611814422 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN FPC BOTTOM 18POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $0.467 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 68611814422 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FPC BOTTOM 18POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73846 pcs | Data sheet | 6861xx14422 DrawingWR-FPC,FFC Series Flyer |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 732-2000-2 | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 18 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | Beige |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Detailed Description | 18 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Black |
