662022231722

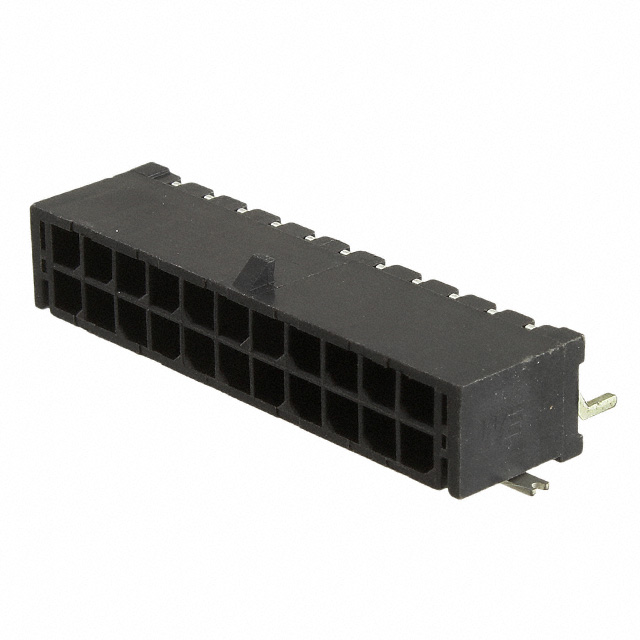

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 662022231722 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 662022231722 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 662022231722 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | WR-MPC3 POWER CONNECTOR 22POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $1.251 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 662022231722 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WR-MPC3 POWER CONNECTOR 22POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27110 pcs | Data sheet | 6620xx231722 DrawingMicro Pwr Conn 3.00MM WR-MPC3 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | WR-MPC3 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 732-4812 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 22 position 0.118" (3.00mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
