653103131822

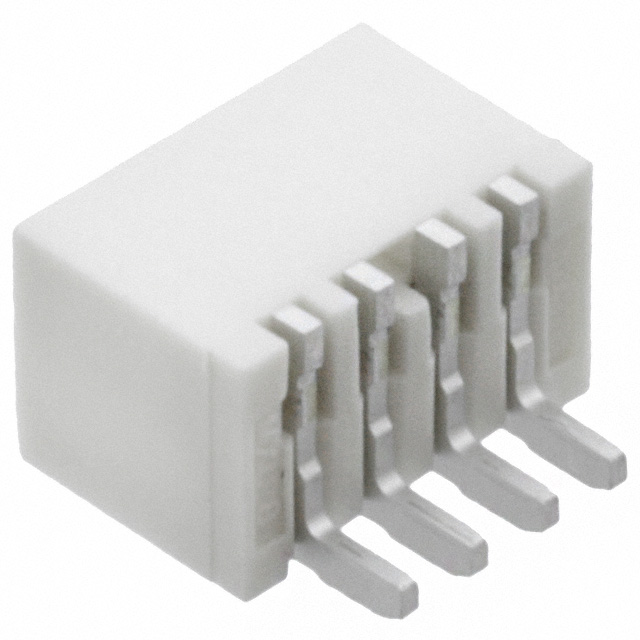

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 653103131822 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 653103131822 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 653103131822 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | HEADER 3POS MALE R/A 1.25MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.691 | $0.588 | $0.536 | $0.432 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 653103131822 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 3POS MALE R/A 1.25MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87222 pcs | Data sheet | 6531xx131822 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | WR-WTB |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 732-2728-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.134" (3.40mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.084" (2.13mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
