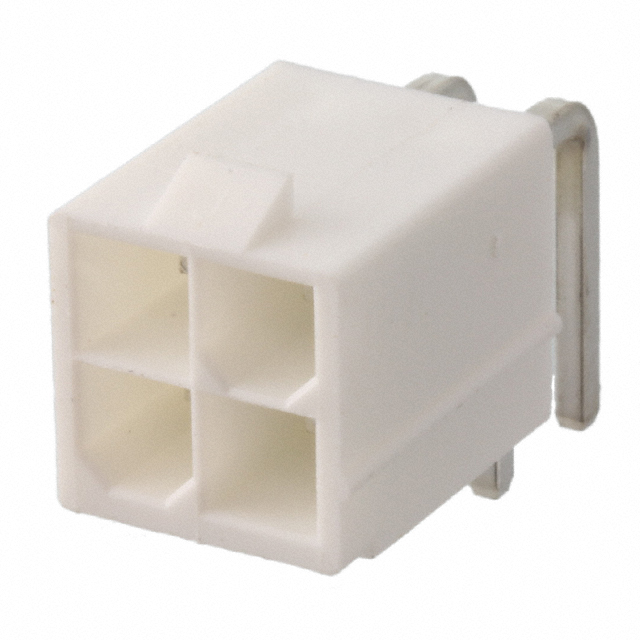

649004227222
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 649004227222 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 649004227222 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 649004227222 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | HEADER MALE DUAL ANGLE W/MNT 4P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.301 | $0.295 | $0.272 | |||
| 100 pcs | 248 pcs | 496 pcs | |||
| $0.238 | $0.221 | $0.21 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 649004227222 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER MALE DUAL ANGLE W/MNT 4P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105697 pcs | Data sheet | 6490xx227222 DrawingMini Pwr Conn 4.20MM WR-MPC4 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | WR-MPC4 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 732-1938 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm) |
| Current Rating | 8A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Nickel |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
