620304124022

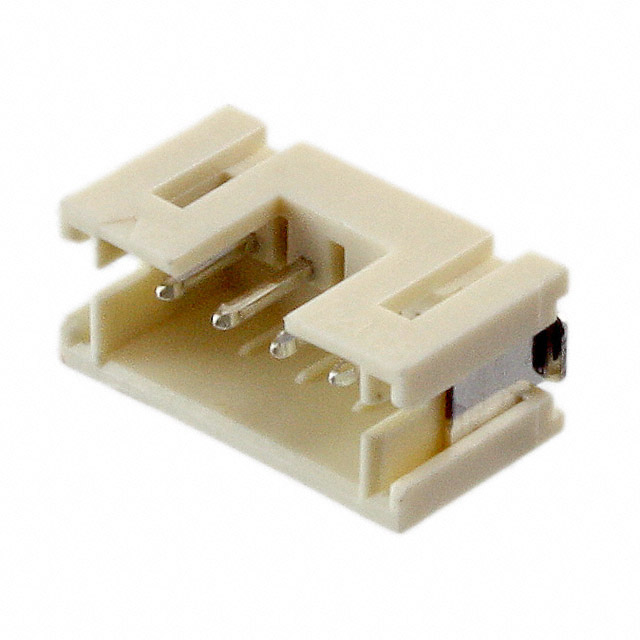

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 620304124022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 620304124022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 620304124022 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | HEADER 4POS MALE 2.00MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.477 | $0.413 | $0.377 | $0.304 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 620304124022 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 4POS MALE 2.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77291 pcs | Data sheet | 6203xx124022 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | WR-WTB |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 732-2709-1 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.78mm | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.263" (6.67mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
