61306421821

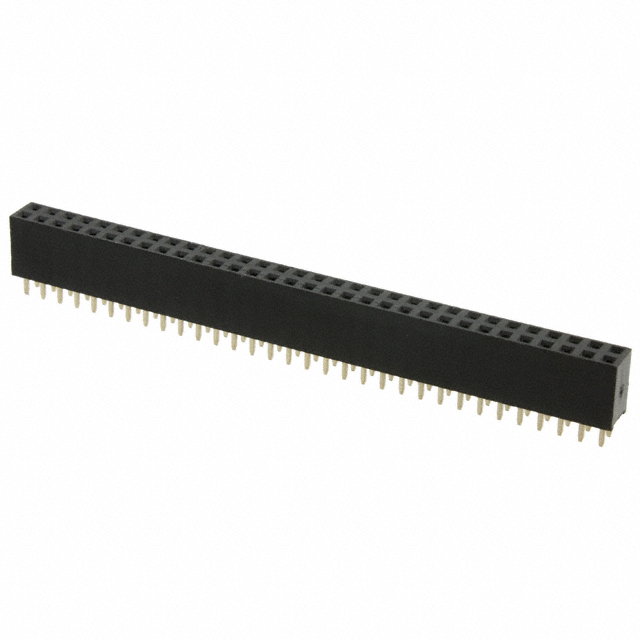

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 61306421821 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 61306421821 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 61306421821 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | HEADER 64POS SOCKET DL 2.54 MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $1.092 | $1.07 | $0.988 | $0.906 | $0.823 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 61306421821 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 64POS SOCKET DL 2.54 MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45662 pcs | Data sheet | 6130xx21821 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board |
| Series | WR-PHD | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 732-2862 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 64 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.331" (8.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 64 Position Header Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
