61202021721

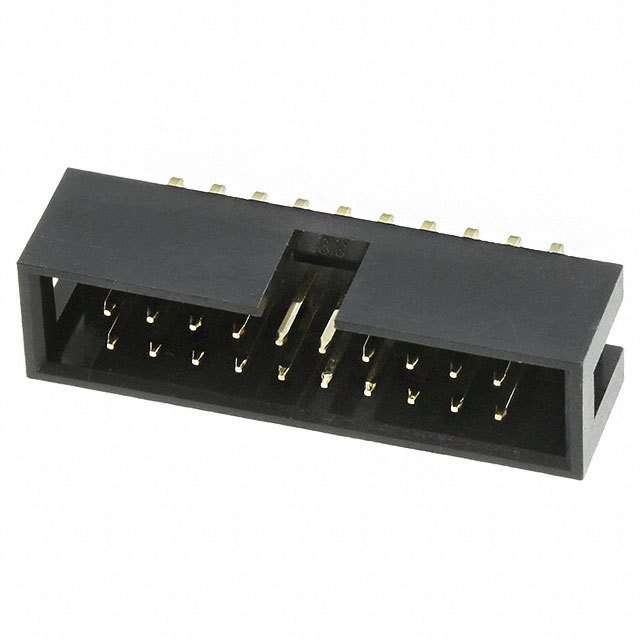

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 61202021721 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 61202021721 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 61202021721 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | BOX HEADER 2.54MM MALE ANG 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 160 pcs | 320 pcs |
|---|---|---|---|---|---|
| $0.371 | $0.363 | $0.336 | $0.301 | $0.266 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 61202021721 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | BOX HEADER 2.54MM MALE ANG 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71416 pcs | Data sheet | Box Header_IDC Conn WR-BHD6120xx21721 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | WR-BHD |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 732-2100 | Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.358" (9.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
