156125M173000

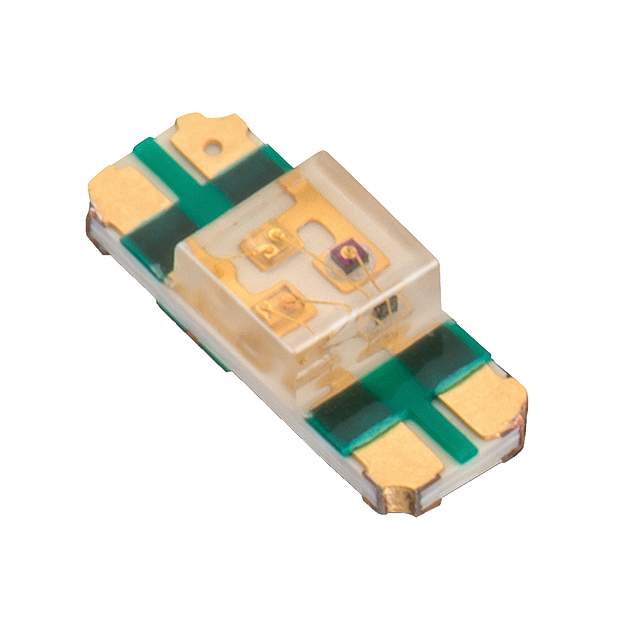

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 156125M173000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 156125M173000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 156125M173000 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | LED RGB CLEAR 4SMD BOTTOM ENTRY |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.195 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 156125M173000 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | LED RGB CLEAR 4SMD BOTTOM ENTRY | Lead Free Status / RoHS Status | |
| Quantity Available | 122148 pcs | Data sheet | 156125M173000 Drawing |
| Category | Optoelectronics | Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Viewing Angle | 120° | Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 1.20mm W | Series | WL-SFRW |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, No Lead |
| Other Names | 732-11426-2 | Mounting Type | Surface Mount, Bottom Entry |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 80mcd Red, 280mcd Green, 70mcd Blue |
| Manufacturer Standard Lead Time | 10 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Square with Flat Top, 1.20mm | Lens Color | Colorless |
| Height (Max) | 0.80mm | Features | - |
| Detailed Description | Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead | Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Configuration | Common Anode | Color | Red, Green, Blue (RGB) |
