Home > Products > Relays > Power Relays, Over 2 Amps > 8870290000

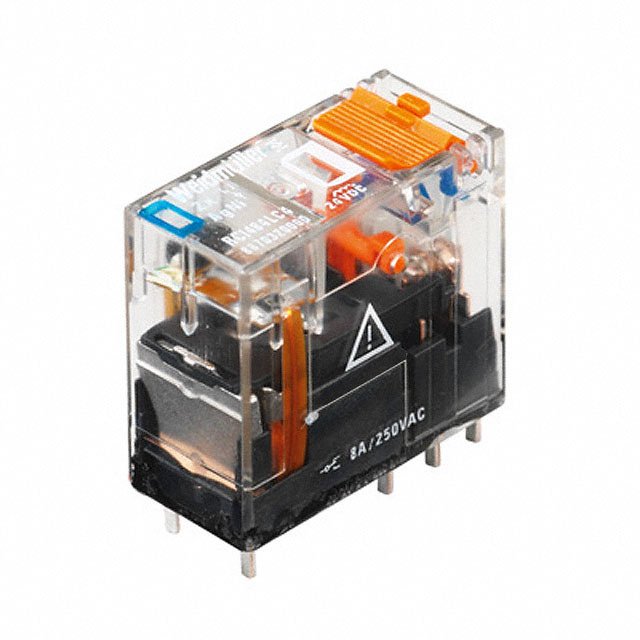

8870290000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8870290000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	8870290000
Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE SPDT 16A 115V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7853 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.003

Product parameter
Data sheet

Product parameter

Part Number	8870290000	Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE SPDT 16A 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7853 pcs	Data sheet	Industrial Relay/Opto Modules-6mm
Category	Relays	Turn On Voltage (Max)	86.3 VAC
Turn Off Voltage (Min)	17.3 VAC	Termination Style	PC Pin
Switching Voltage	250VAC - Max	Series	RCI
Release Time	6ms	Relay Type	General Purpose
Packaging	Bulk	Operating Temperature	-40°C ~ 70°C
Operate Time	8ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	LED Indicator, Test Button
Detailed Description	General Purpose Relay SPDT (1 Form C) 115VAC Coil Through Hole	Contact Rating (Current)	16A
Contact Material	Silver Nickel (AgNi)	Contact Form	SPDT (1 Form C)
Coil Voltage	115VAC	Coil Type	Non Latching
Coil Resistance	8.1 kOhms	Coil Power	0.8 VA
Coil Current	6.6mA
