8690810000

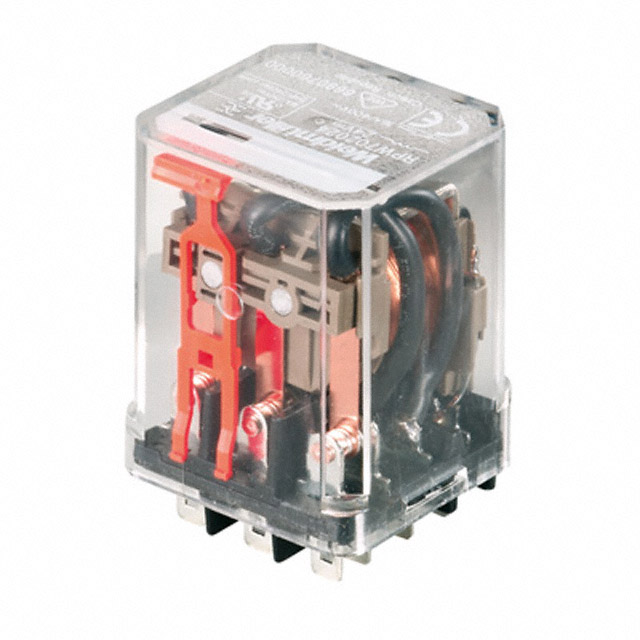

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8690810000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8690810000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8690810000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | RELAY GEN PURPOSE 3PDT 16A 230V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $9.237 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8690810000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 3PDT 16A 230V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3666 pcs | Data sheet | 8690810000 |
| Category | Relays | Turn On Voltage (Max) | 184 VAC |
| Turn Off Voltage (Min) | 69 VAC | Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Switching Voltage | 440VAC - Max | Series | RPW |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -45°C ~ 60°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay 3PDT (3 Form C) 230VAC Coil Socketable | Contact Rating (Current) | 16A |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Contact Form | 3PDT (3 Form C) |
| Coil Voltage | 230VAC | Coil Type | Non Latching |
| Coil Resistance | 7.5 kOhms | Coil Power | 2.8 VA |
| Coil Current | 11.7mA |
