8689950000

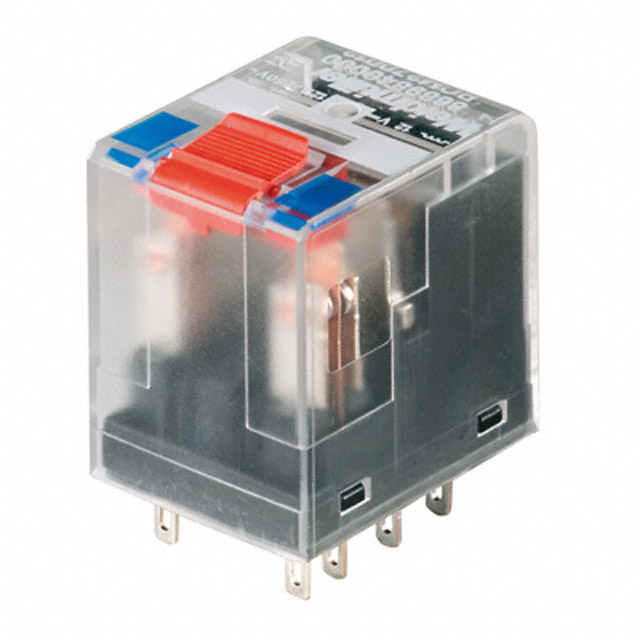

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8689950000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8689950000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8689950000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | RELAY GEN PURPOSE 3PDT 10A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $7.519 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8689950000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 3PDT 10A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4897 pcs | Data sheet | 8689950000 |
| Category | Relays | Turn On Voltage (Max) | 19.2 VAC |
| Turn Off Voltage (Min) | 7.2 VAC | Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Switching Voltage | 400VAC - Max | Series | RCM |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -40°C ~ 70°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | LED Indicator, Test Button |
| Detailed Description | General Purpose Relay 3PDT (3 Form C) 24VAC Coil Socketable | Contact Rating (Current) | 10A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | 3PDT (3 Form C) |
| Coil Voltage | 24VAC | Coil Type | Non Latching |
| Coil Resistance | 192 Ohms | Coil Power | 1 VA |
| Coil Current | 41.6mA |
