1948010000

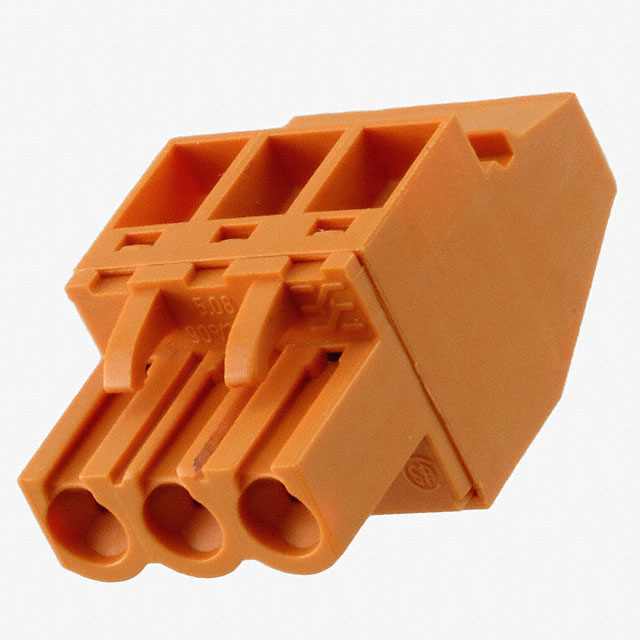

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1948010000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1948010000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1948010000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 3POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.266 | $0.965 | $0.904 | $0.804 | $0.786 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.725 | $0.655 | $0.581 | $0.546 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1948010000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63622 pcs | Data sheet | 1948010000OMNIMATE Catalog |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-4mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Plug, Female Sockets | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | Omnimate BL |
| Screw Size | M2.5 | Positions Per Level | 3 |
| Plug Wire Entry | 90° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1948010000-ND 281-3225 BLZP 5.08/03/90 SN OR BX |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.555" (14.10mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Retention Latches (Wire Side) | Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Current - UL | 20A | Current - IEC | 23A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Orange |
