1775012001

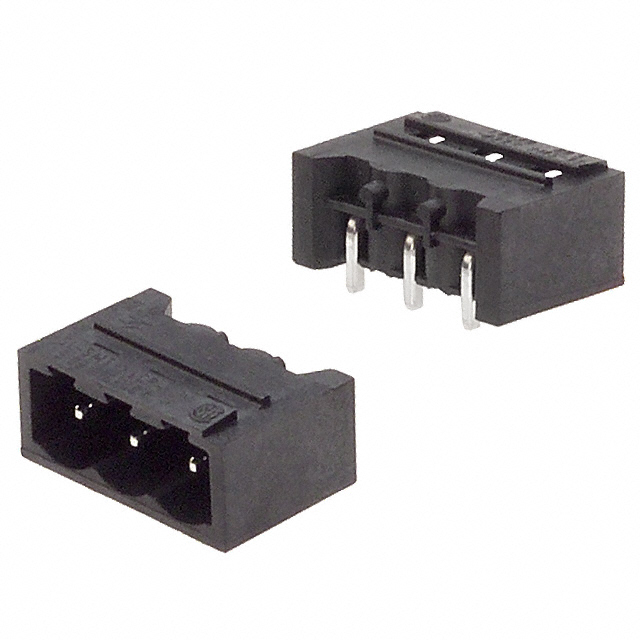

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1775012001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1775012001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1775012001 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 3POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.651 | $0.456 | $0.426 | $0.386 | $0.385 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.325 | $0.308 | $0.274 | $0.222 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1775012001 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101466 pcs | Data sheet | 1775042001 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 281-1661 SL-SMT5.08/3/90G |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 18.5A |
| Current - IEC | 27.5A | Contact Tail Length | 0.059" (1.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
