1762012001

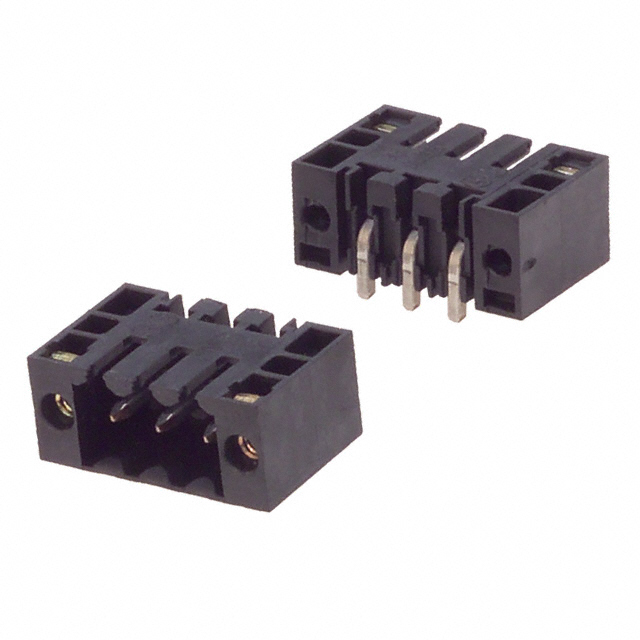

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1762012001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1762012001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1762012001 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 3POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.51 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1762012001 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60028 pcs | Data sheet | SL-SMT 35 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 125V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-1764 SL-SMT3.5/3/90F |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.295" (7.50mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Header Orientation | 90°, Right Angle | Features | Mating and Mounting Flange |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | 13A | Contact Tail Length | 0.059" (1.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
