1748240000

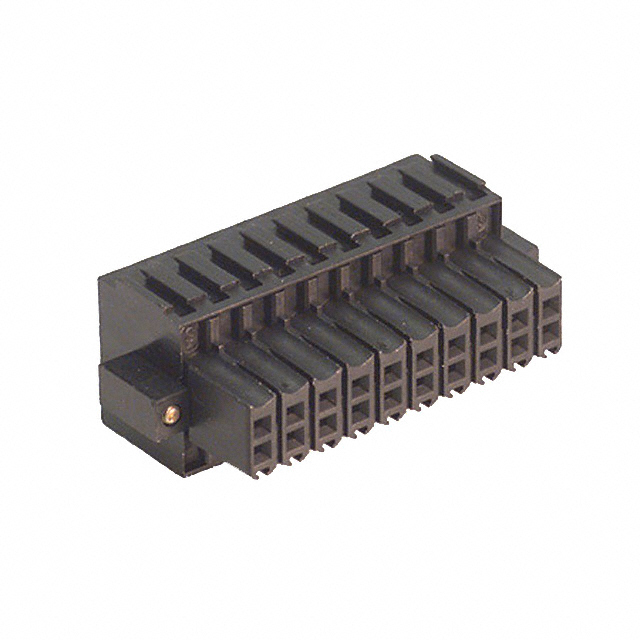

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1748240000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1748240000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1748240000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 20POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.307 | $5.823 | $5.638 | $5.267 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.193 | $4.822 | $4.729 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1748240000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 20POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6285 pcs | Data sheet | 1748240000 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-1mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 150V | Voltage - IEC | 250V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | Omnimate B2L |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-1861 B2L3.5/20F |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 20 |
| Number of Levels | 2 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.618" (15.70mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 20 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 10.3A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
