1747940000

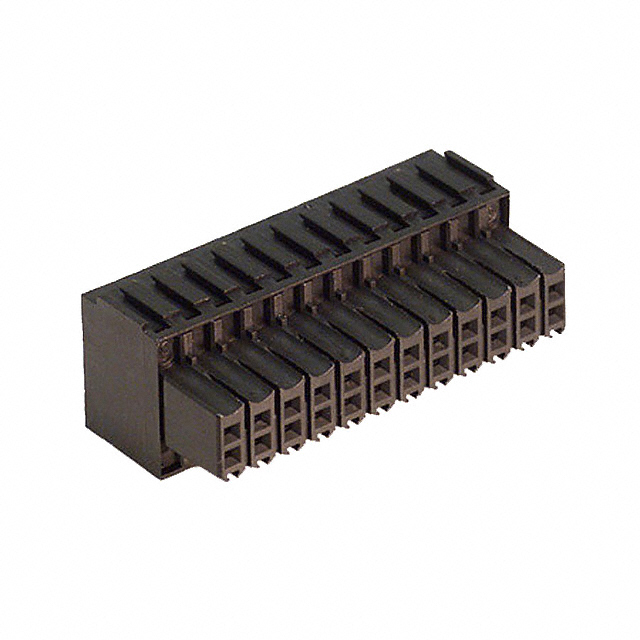

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1747940000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1747940000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1747940000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 24POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 42 pcs | ||||
|---|---|---|---|---|---|
| $5.375 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1747940000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 24POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6579 pcs | Data sheet | 1747940000 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-1mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 200V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | Omnimate B2L |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-1855 B2L3.5/24 |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 24 |
| Number of Levels | 2 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.618" (15.70mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | - |
| Detailed Description | 24 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 10.3A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
