1728380000

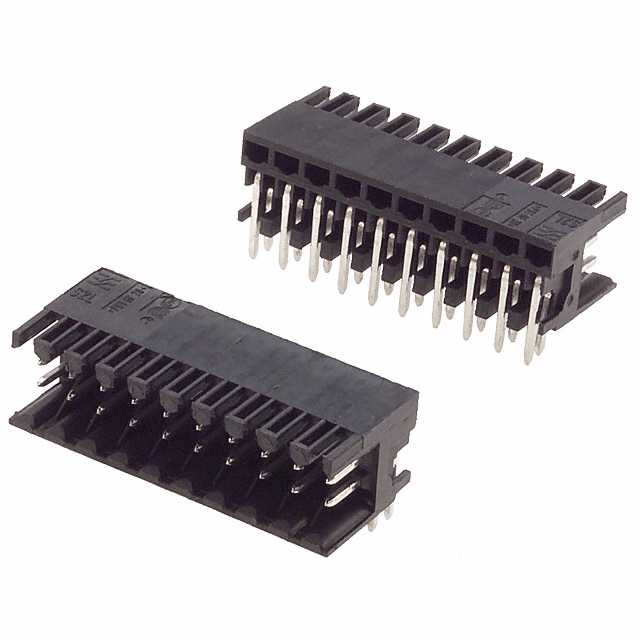

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1728380000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1728380000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1728380000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 20POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 1728380000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 20POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6023 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 100V |
| Type | Header, Male Pins, Shrouded (2 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate S2L |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-1812 S2L3.5/20/90 |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 20 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | 7.5A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
