1690480000

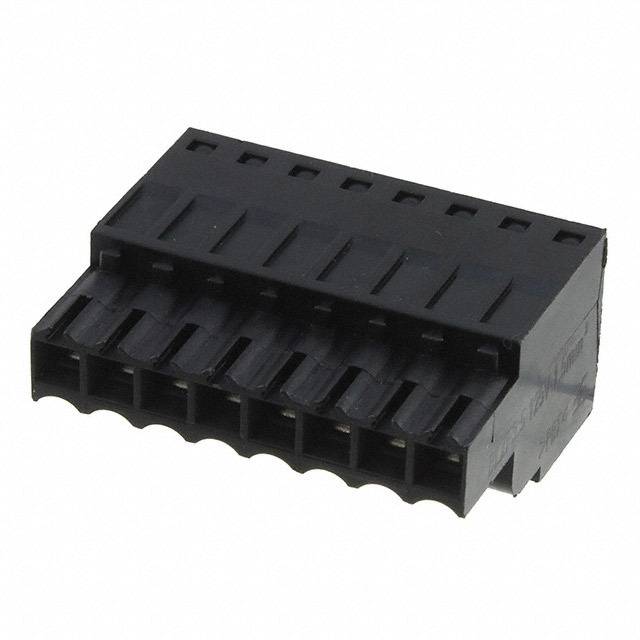

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1690480000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1690480000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1690480000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 8POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.646 | $3.121 | $2.979 | $2.678 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.535 | $2.297 | $2.139 | $2.02 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1690480000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17851 pcs | Data sheet | 1690480000 |
| Category | Connectors, Interconnects | Wire Strip Length | 10mm |
| Wire Gauge or Range - mm² | 0.2-1.5mm² | Wire Gauge or Range - AWG | 14-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | Omnimate BL |
| Screw Size | - | Positions Per Level | 8 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 169048 281-1004 BLZF 3.5/8 BK |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.512" (13.00mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | - | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 14.5A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
